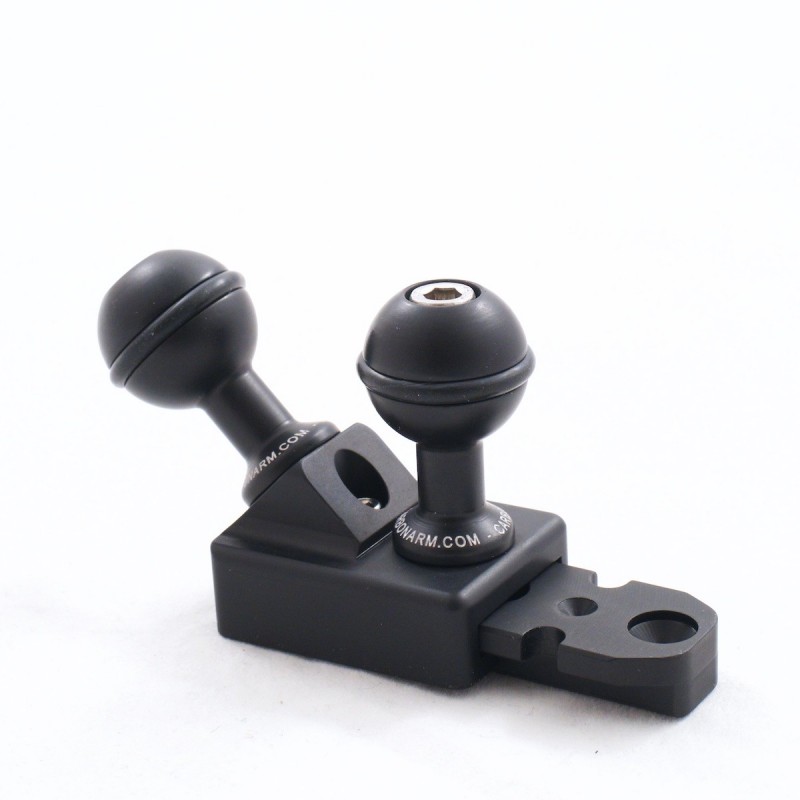

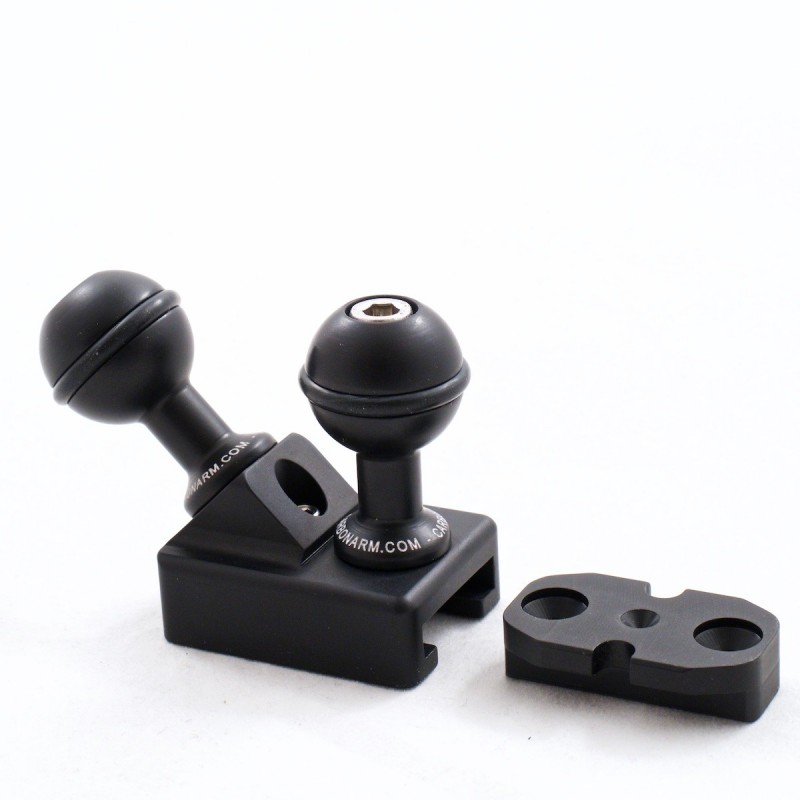

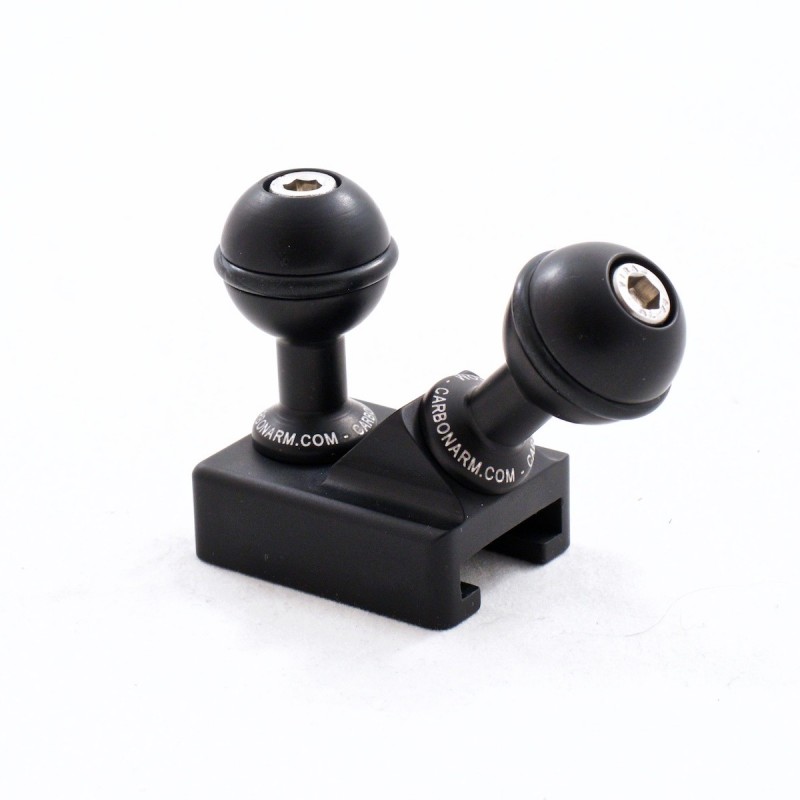

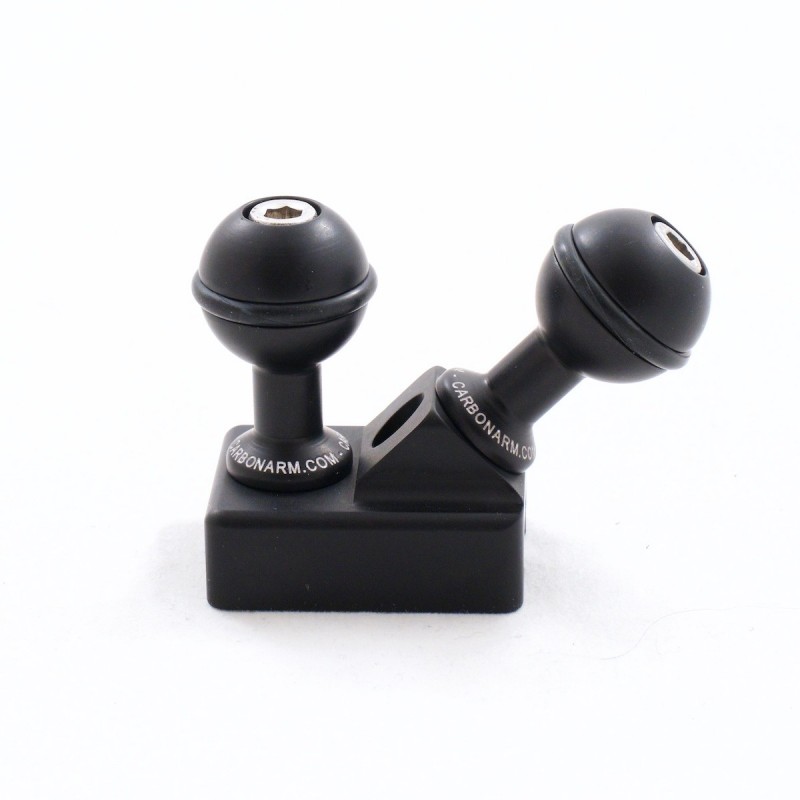

Double starting ball with bayonet mount

Double starting ball with bayonet mount complete with two M6 balls for underwater use

Starting base with bayonet mount, complete with two M6 balls mounted respectively in vertical and 45° positions.

This accessory quickly attaches to trays or housings equipped with a T-bayonet base and allows for easy removal of arms or other mounted accessories. The M6 balls allow full integration with the entire Carbonarm accessory system, including clamps, arms, and additional components.

The 2.5 cm (1”) balls and the base, 100% Made in Italy, are made of high-quality anticorodal aluminum and anodized with a 40-micron military-grade treatment to ensure maximum resistance to wear and saltwater corrosion over time.

Friction function underwater: the 2.5 cm (1”) ball is equipped with an O-ring that creates a friction effect when locked in a clamp. This system allows quick and precise orientation of the clamp and the entire set-up above it, without the need for continuous loosening or tightening. Underwater, it is sufficient to slightly loosen the clamp’s wing nut to adjust the position: thanks to the action of the O-ring, the clamp remains stable without requiring excessive tightening and is always ready to be repositioned if needed.

With use, the O-ring may wear over time; in this case, simply replace it with the dedicated spare kit.
