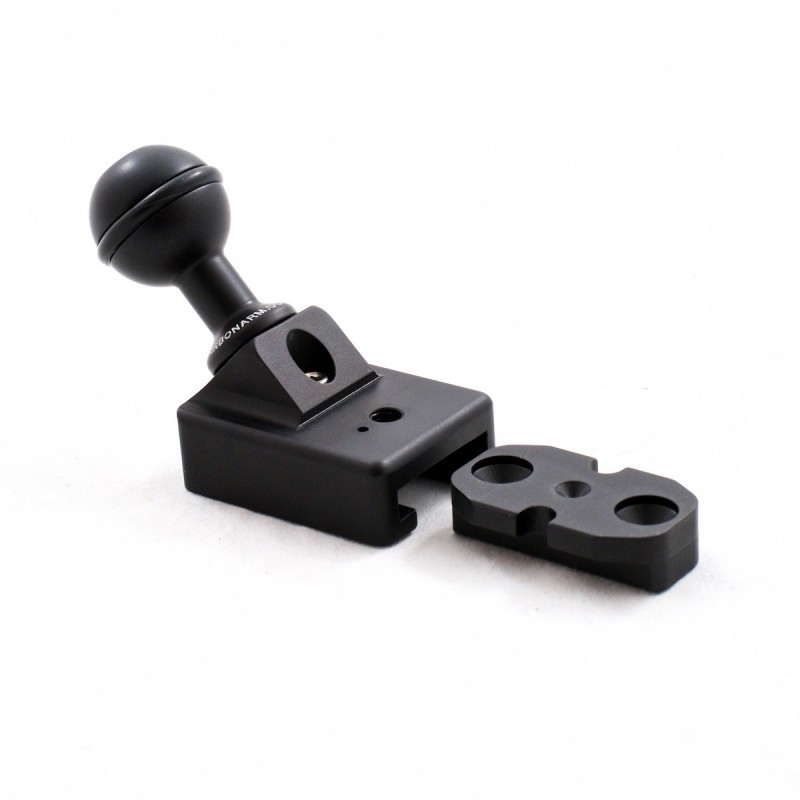

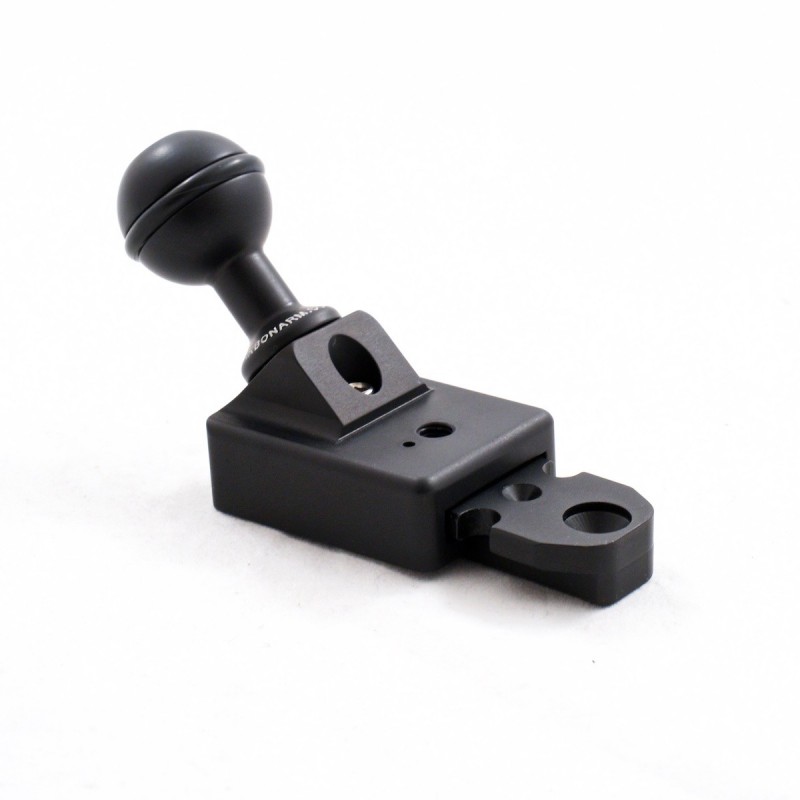

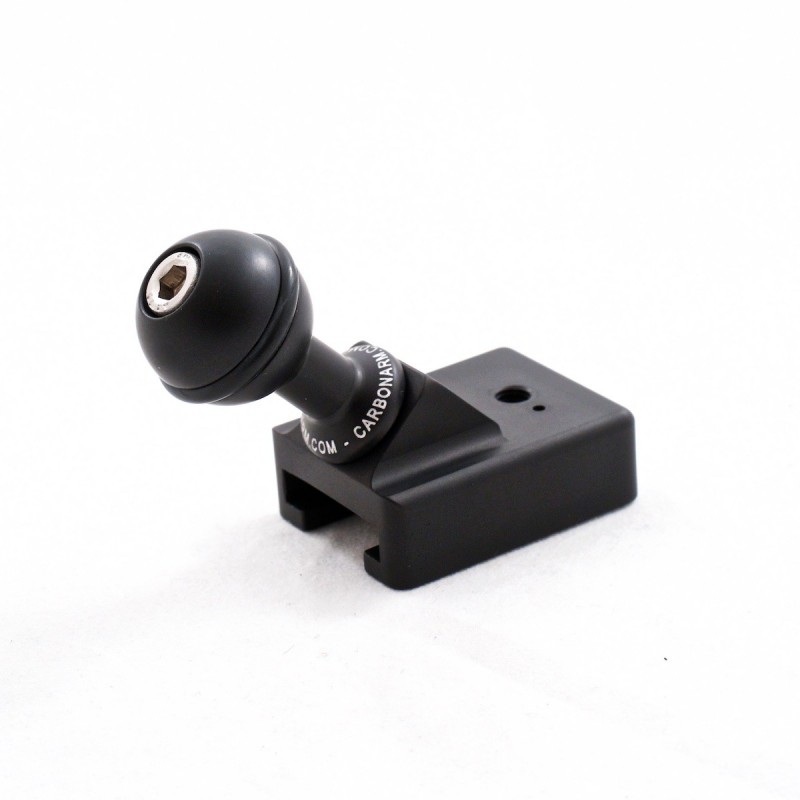

Double bayonet mount starting base with 45° ball

Double bayonet mount base with M6 ball at 45° for underwater use

Double starting base with bayonet mount, complete with a 45° positioned M6 ball and equipped with a second M6 hole, allowing the addition of another M6 ball in vertical position if needed.

100% Made in Italy, made of high-quality anticorodal aluminum and anodized with a 40-micron military-grade treatment, ensuring maximum resistance to wear and saltwater corrosion over time.

This accessory quickly attaches to trays or housings equipped with a starting T-bayonet and allows for easy removal of arms or other mounted accessories. The M6 ball integrates with the entire Carbonarm accessory system, including clamps, arms, and additional components.

Friction function underwater: the 2.5 cm (1”) ball is equipped with an O-ring that creates a friction effect when locked in a clamp. This system allows quick and precise orientation of the clamp and the entire set-up above it, without the need for continuous loosening or tightening. Underwater, it is sufficient to slightly loosen the clamp’s wing nut to adjust the position: thanks to the action of the O-ring, the clamp remains stable without requiring excessive tightening and is always ready to be repositioned if needed.

With use, the O-ring may wear over time; in this case, simply replace it with the dedicated spare kit.
